Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED Specs:
| Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED | |
| GT-3535R1630-1CC0-JC42M | |
|
Taiwan Jingcheng 42*42mil chip |
|
|
{{0}}.8-1.0vdc with max 1000mA forward current |
|
|
30-40mW at 700mA forward current |
|
|
1600-1650nm available |
|
|
3 Watt with max 1000mA |
|
|
120 degree dome silicone lens, Other lighting angle such as 30, 60 and 90 degree available here too with Min order quantity request. |
|
| 3 years | |
|
1. SKD parts available; 2. Aluminum pcb boards LED assembly service is also available here. |

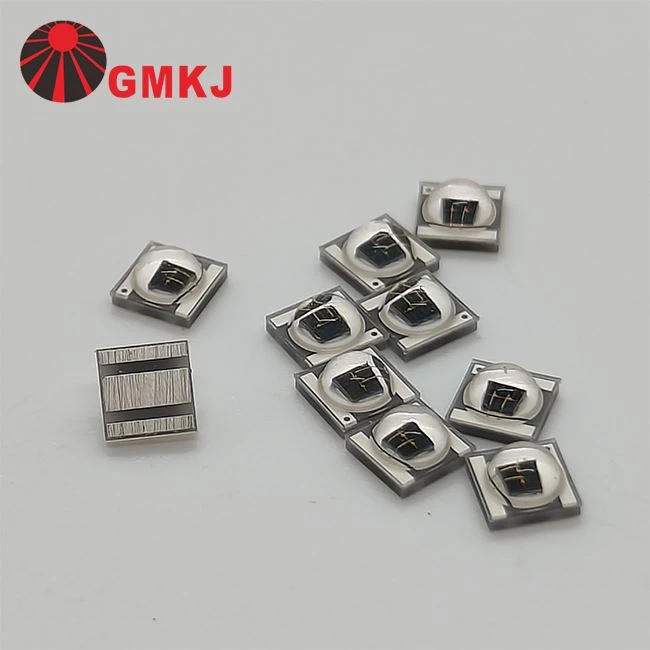

Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED picture:
| 120 degree lighting angle picture | 30, 60 and 90 degree lighting angle with sharp shape led lens |
 |
 |
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED pcb boards assembly service available:
| Aluminum star pcb boards assembly, diameter 20mm | 10 leds and 20 leds copper smd led boards assembly with 10S1P and 10S2P circuit design |
 |
 |
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED package dimensions:
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED Eletrical specs:
|
VF |
IF=700mA |
0.80 |
-- |
1.00 |
V |
|
|
RΘJ-B |
IF=700mA |
-- |
6.5 |
-- |
||
|
Φe |
IF=700mA |
30 |
-- |
40 |
||
|
λp |
IF=700mA |
1630 |
-- |
1650 |
||
|
IR |
VR=1V |
−− |
−− |
10 |
μ A |
|
|
2Θ1/2 |
IF=700mA |
−− |
120 |
−− |
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED
Infrared 1600nm 1650nm 3W 700mA 3535 SMD LED is mainly used for Security Camera, CCTV camera and automatic sorting machine and other applications.
CE-LVD
ISO9001
LM-80
